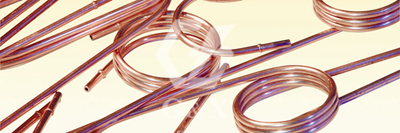

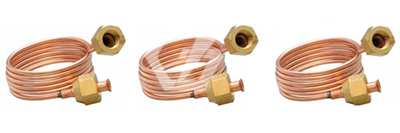

Product Name: Capillary Copper Tube/Pipe
Material: C12200/ DHP / Cu:99.9%P:0.015%-0.04%
Applicable for: R12, R416A, R314A, R401A, R401B, R406A, R500, R22, R402B, R403B, R404A, R407C, R408A, R502, R402A, R407A, R407B, R507, R416A;
Standard: ASMT B360 or as per customer’s special requirements;
Supplied: in the form of Level Wound Coil (35LBS-50LBS/coil), Pancake Coil(5mtr,10mtr,15mtr, 20mtrs, 25mtrs, 30mtrs,50mtrs), Straight Length(0.1mtr-11.8mtr), or as per customer’s special design;
Inside Cleanness: Super Clean Grade;
Standard Size:
|
OD (mm) |
ID (mm) |
Unit Weight (kg/meter) |
Max. Allowable Residue (mg/meter) |
OD (mm) |
ID (mm) |
Unit Weight (kg/meter) |
Max. Allowable Residue (mg/meter) |
|
1.83 |
0.66 |
0.0204 |
0.656 |
3.18 |
1.78 |
0.0486 |
1.74 |
|
1.83 |
0.71 |
0.0199 |
0.689 |
3.18 |
1.91 |
0.0454 |
1.87 |
|
2.06 |
0.79 |
0.0254 |
0.754 |
3.68 |
2.03 |
0.0663 |
1.97 |
|
2.06 |
0.84 |
0.0248 |
0.820 |
3.68 |
2.16 |
0.0625 |
2.10 |
|
2.21 |
0.91 |
0.0284 |
0.886 |
3.68 |
2.29 |
0.0586 |
2.23 |
|
2.21 |
0.99 |
0.0239 |
0.951 |
4.06 |
2.54 |
0.0707 |
2.46 |
|
2.36 |
1.07 |
0.0312 |
1.05 |
4.06 |
2.79 |
0.0611 |
2.72 |
|
2.47 |
1.17 |
0.0331 |
1.15 |
4.78 |
3.03 |
0.0949 |
2.95 |
|
2.51 |
1.24 |
0.0335 |
1.21 |
4.78 |
3.30 |
0.0836 |
3.21 |
|
2.69 |
1.37 |
0.0377 |
1.34 |
5.08 |
3.68 |
0.086 |
3.58 |
