Product Serial: GX0008

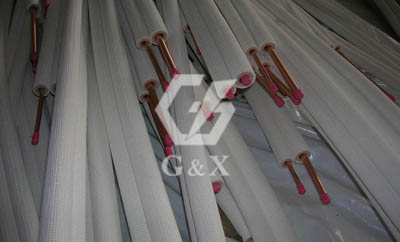

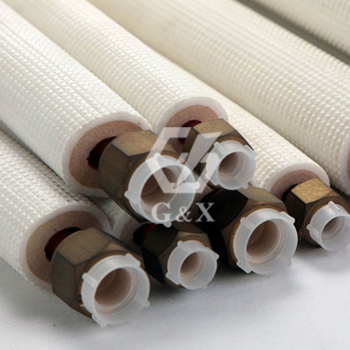

Product Name: Insulated Copper Tube/Pipe







Inside Cleaned Copper Tubes for refrigeration gas and capped at the both ends, with interior surface maximum permissible residue 0.038g/m2;

Phosphorus Deoxidized Soft Temper Copper Tube DHP(C12200, 99.9%Cu);

Dimension and Mechanical Properties acc. to ASTM B280, EN12735-1, AS1571, JIS H3300;

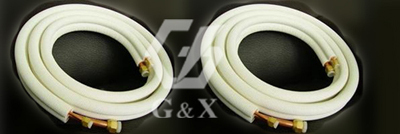

Pair Coil

Pair Coil Description

Copper Tube outer dia. X Wall Thick.

(Inch)             (mm)

Insulating

Thickness

(mm)

Pair Coils

Per carton

Carton Dimensions

Pair Coil Length

  (20Mtrs              (30Mtrs)

1/4”-3/8”

6.35x0.80- 9.53x0.80

9

1

57x57x18

67x67x17

1/4”-1/2”

6.35x0.80- 12.70x0.80

9

1

61x61x19

69x69x18

1/4”-5/8”

6.35x0.80- 15.88x1.00

9

1

72x72x20

83x83x22

3/8”-1/2”

9.53x0.80- 12.70x0.80

9

1

61x61x19

72x72x19

3/8”-5/8”

9.53x0.80- 15.88x1.00

9

1

72x72x20

83x83x22

3/8”-3/4”

9.53x0.80- 19.05x1.00

9

1

75x75x22

87x87x22

1/2”-3/4”

12.70x0.80-19.05x1.00

9

1

75x75x22

87x87x22



Single Coil

Single Coil Description

Copper Tube outer dia. X Wall Thick.

(Inch)             (mm)

Insulating

Thickness

(mm)

Pair Coils

Per carton

Carton Dimensions

Pair Coil Length

20Mtrs        (30Mtrs)            (50Mtrs)

1/4”

6.35x0.80

9

1

51x51x14

59x59x19

59x59x19

3/8””

9.53x0.80

9

1

52x52x15

65x65x20

65x65x20

1/2”

12.70x0.80

9

1

54x54x17

65x65x20

65x65x20

5/8”

15.88x1.00

9

1

65x65x19

79x79x23

79x79x23

3/4”

19.05x1.00

9

1

68x68x19

85x85x24

85x85x24



Insulation Properties

1) Polyethylene & PE type

Extruded and Closed cell white polyethylene with a white outside PE-protection layer;

Average Density: 33Kg/m3;

Heating Conduction at 00≤0.033W/MK;C

Working Temperature from -400C until +1200C;

Vapor Resistance: μ5000;

White external non toxic and resistance to external chemical agents and ultra-violate rays;

RoHS Certificate Approved;



2) Rubber Type

Extruded and Closed cell synthetic rubber with external protection;

Density:70-90 Kg/m3;

Thermal Conductivity: -200C                 00C               400C

(W/(M.K))          0.031                 0.034             0.038

Working Temperature from -5000C (Flat Surface +850C);C until +110

Reaction to fire: self-extinguishing GB8624B1(OXYGEN INDEX 34%),

Non-flammable;

Vapor Resistance: μ4500;
