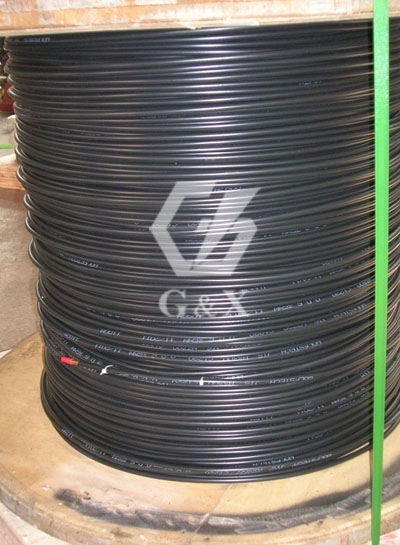

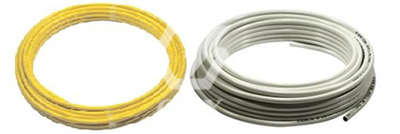

Product Name: PVC/PE coated LPG/PNG copper tube/pipe
Standard:
Copper Tube made from Deoxidized High Phosphorus Copper or Deoxidized Low Phosphorus Copper; Cu≥99.9%; Good joinability, Long life (50years), and Bendable. As per ASTM B68, AS1572, JIS H3300, EN12449 and BS2871-2.
PVC Sheath made from eco-friendly material; ROHS assured; Good Weatherability, Long life(10years), and Beautiful Appearance.
How Furnished:
Pancake Coil, Bunch Coil, Straight Length;
*If customers need other forms, please check with us for the possibility.
With Wire or without Wire:
We can supply tube-with-wire type, coated by PVC Sheath, as per customers’ choice. The tube-with-wire type is unique design with our patent specially for CNG/LPG transport, which can improve efficiency and reduce cost for installation of Auto CNG/LPG system.
Specification:
|
Model No. |
Copper Tube |
PVC Sheath |
Working Pressure (psi) |
|||
|
O.D.XW.T. |
Length |
Wall Thick. |
Length |
Color |
||
|
FSG-001 |
1/4”x20swg |
7.5mtr/ 25feet
15mtr/ 50feet 30mtr/ 100feet
|
1/16” |
7.5mtr/ 25feet
15mtr/ 50feet
30mtr/ 100feet
|
Red/ Blue/ Yellow/ White/ Black
|
1891 |
|
FSG-002 |
5/16”x20swg |
1/16” |
1513 |
|||
|
FSG-003 |
3/8”x20swg |
1/16” |
1265 |
|||
|
FSG-004 |
1/2”x20swg |
1/16” |
945 |
|||
|
FSG-005 |
6mmx0.8mm |
1.5mm |
1760 |
|||
|
FSG-006 |
6mmx1mm |
1.5mm |
2211 |
|||
|
FSG-007 |
8mmx1mm |
1.5mm |
1658 |
|||
|
FSG-001 |
1/4”x20swg |
1.5mm |
1324 |
|||
|
FSG-002 |
5/16”x20swg |
1.5mm |
1091 |
|||
Note: PE as high-grade coating materials, replacing PVC, is available as per customer’s requests.
