Product Serial: GX0010
Product Name: Bundy Tube/Pipe









Single-Wall Tubes

Main Characteristics: Excellent mechanical property, extremely good inside cleanness and nice foundation for late process. The tube can be provided in coils or cut to length and mainly for refrigeration industry and auto industry. It is an ideal material for all kinds of fluid and gas transmission tubes. All kinds of surface treatments are available according to the need from the customers.



O.D  mm

Thicknessmm

Moisture contentMpa

Unit extension

Inner surface clearanceg/m2

Ób (Mpa)

Ós (Mpa)

Ø8

0.70

≤30

≥24

≤50

≥290

≥200

Ø6.35

Ø6

Ø4.76

Ø4

0.50

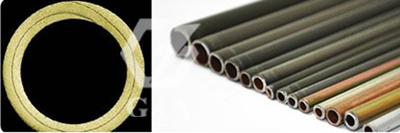

Double-Wall Tubes

Main Characteristics: Fine inside cleanness, high strength, nice elongation, good foundation for late process , anti leakage, anti high pressure explosion, excellent anti corrosion power after surface treatment. It is an ideal material for tubes of condensation , evaporation and autos.

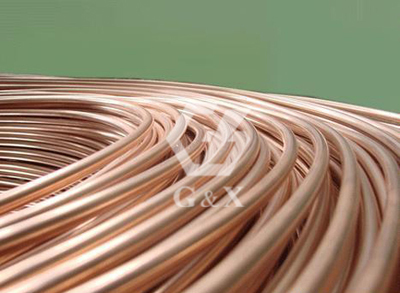

The tube can be provided in coils or cut to length -- plain/oil coated bundy tube, galvanized bundy tube, copper coated bundy tube, PVF coated bundy tube, etc.

O.D   mm

Thicknessmm

Minimum burst pressure
Mpa

Unit extension

Inner surface clearance
g/m2

Ób (Mpa)

Ós (Mpa)

Ø4

0.51

≥20

≤0.16

≥290

≥200

Ø4.76

0.70

110

Ø6

0.70

85

Ø6.35

0.70

78

Ø8

0.70

67.5

Ø9

0.70

61

Ø10

0.70

55

Ø12

0.70

32
